AppDynamics grouping Database Custom Metric Queries

AppDynamics Logo

When you create Custom Database Metrics in AppDynamics, you first thought is to create a new row for each metric, but if you have a lot to report on this can become messy. Not only that but in the metric view you will have a very long list of reports to go through. Therefore when we had the consultant down at work, we was shown how to group collections of metrics in one query, which then shows in the metric view in a sub folder. This tactic, we could not find anywhere on the internet, so I thought I would share this very handle insight for AppDynamics.

Your stand method to add custom queries and metrics would be to go to this view below configuration view in AppDynamics and add new queries for each of the metrics you wish to report on.

AppDynamics Databases

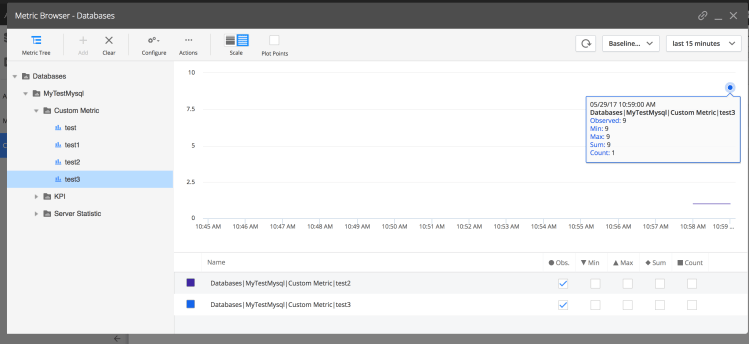

You can then go to the metric view and see the data coming in like below.

AppDyanmics Metric Browser

However, like I said above, this list can grow fast plus by default you are limited to only 20 of theses’ queries, which can disappear faster. Therefore this method gives you more bang for your buck on custom metrics, plus also the organisation of your data.

Instead of adding each query separate, what we can do is create a grouping of queries into sub folders of the ‘Custom Metric’ folder, to look like this.

  • Before
  • Custom Metric
    • Queue 1
    • Queue 2
    • Queue 3
  • After
  • Custom Metric
    • MessagingQueueMontioring
      • Queue 1
    • Queue 2
    • Queue 3

As we, at my company, completed this in Microsoft SQL I will use that as an example, but I would be confident it can be translated to other languages with the same outcome with some slight changes to syntax.

Say we start with the 3 queries that we would want to monitor and we will keep them simple:

SELECT count(id) FROM MessageQueueOne
SELECT count(id) FROM MessageQueueTwo
SELECT count(id) FROM MessageQueueThree

To create the top level folder, you simply create a single query item called ‘MessagingQueueMonitoring’. In this new custom metric query you need to add the above 3 SQL statements, but we need them to be a single query instead of 3. For this to work we will use the SQL command ‘UNION ALL’ to join them together:

SELECT count(id) FROM MessageQueueOne
UNION ALL
SELECT count(id) FROM MessageQueueTwo
UNION ALL
SELECT count(id) FROM MessageQueueThree

This will now create one table with 3 rows and their values, but for AppDynamics to recognise these in the metrics view we need to tell it what each of these rows mean. To tell AppDynamics what the nodes under it are called you add a column to each query for the name. This column should be called ‘Type’ and then for AppDyanmics to know what the value part of the table is, you call that column ‘Total’.

You should end up with a query like below:

SELECT 'Message Queue One' as Type, count(id) as Total FROM MessageQueueOne
UNION ALL

SELECT 'Message Queue Two' as Type, count(id) as Total FROM MessageQueueTwo
UNION ALL

SELECT 'Message Queue Three' as Type, count(id) as Total FROM MessageQueueThree

Then this should result in a table like this:

TypeTotal
Message Query One4
Message Query Two2
Message Query Three56

Published by Chris Pateman - PR Coder

A Digital Technical Lead, constantly learning and sharing the knowledge journey.
